User manual
Simplify 1-2-Pole Relay
Namron Simplify Relay 1–2 Pole 16A is a powerful and flexible relay in a compact format, designed to give you full control over lighting and other electrical loads in your smart home. With support for both Bluetooth Mesh and Zigbee 3.0, you can choose how you want to connect – either directly via the Namron Simplify app or through a gateway for advanced features and remote control.
The relay supports both 1-pole and 2-pole installation and can handle high loads, making it ideal for everything from LED lighting to resistive loads.
Specifications
- Operating voltage
- 220-240V 50/60Hz
- Operating temperature
- -20 to +40 °C
- Relative humidity
- 8 – 80%
- IP Degree
- IP20
- Measurments
- 45.5x45x18 mm
- Load
- LED (1 og 2-pole): 1500 VA
- Resitive load:
- 1-Pole: 3500W
- 2-Pole: 3000W
- Installation
- Mounted in standard wall box
- Protection
- Short circuit protection
- Overload protection
- Overtempterature protection
- Protocol and Radio Frequency
- Bluetooth 2.4GHz (IEE 802.15.4)
- Zigbee 3.0 2.4 GHz (IEE 802.15.4)
Wiring diagram

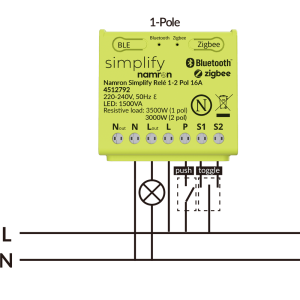

1-Pole configuration

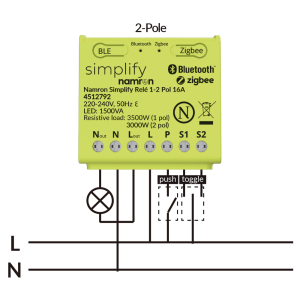

2-Pole configuration
Connecting Switches
External switches can be connected to inputs S1, S2, and P. Only momentary (spring-return) switches are supported.
- The inputs support the following commands:
- S1 – On / Dim Up
- S2 – Off / Dim Down
- P – On/Off & Dim Up/Down
Choosing between Bluetooth and Zigbee mode
| Function | How | LED Indicator |
|---|---|---|
| Activate Zigbee mode | Click and hold the zigbee button for 10 seconds | Flashes green for 5 seconds when mode is changed |
| Activate Bluetooth mode | Click and hold the Bluetooth button for 10 seconds | Flashes blue for 5 seconds when mode is changed |
Operation
| Function | How | LED Indicator |
|---|---|---|
| Bluetooth inclusion | Click the Bluetooth (BLE) button 1 time | Pairing – Flashing Blue Successful – Glows blue |
| Bluetooth exclusion | Press the Bluetooth (BLE) button once, then press and hold it again for 10 seconds | Successful – Glowing red |
| Zigbee inclusion | Click the Zigbee button 1 time | Pairing – Flashing green Successful – Glows green |
| Zigbee exclusion | Press the Zigbee button once, then press and hold it again for 10 seconds | Successful – Glowing red |
| External switch inclusion and exclusion | Turn the light on, Push a external switch 9 times and the 10th tome hold for 5 seconds | Pairing – Lights off-on x2 Successful – Lights off-on x1 |
| TouchLink inclusion | Click the Zigbee button 2 times. Enable TouchLink pairing on the remote device | Pairing – Flashing blue Successful – Glows blue |
| Find and bind inclusion | Click the Zigbee button 3 times. Enable pairing on the remote device | Pairing – Flashing purple Successful – No indication |
| Setting your device back to factory mode | Click the Zigbee or Bluetooth (BLE) button 2 times. 3rd time, hold for 10 seconds | Successful – Glows red |
| Enable OTA mode for manual update with the Simplify app | Zigbee mode – Click 10 times on Zigbee button. BLE mode – Click 10 times on the BLE button | Successful – Flashes between red and blue |
| Disable buttons | Click the Zigbee or Bluetooth (BLE) button 6 times. 7th time hold for 3 seconds | Enable – LED 1 & 2 flashes yellow 3 times Disable – LED 1 & 2 flashes yellow 3 times |
Troubleshooting
| Protocol | Problem | Nb | Cause and what to try |
|---|---|---|---|
| Bluetooth | Device is not found by the Simplify app | 1 | Device is in Zigbee mode Click and hold the Bluetooth button for 10 seconds. BLE LED will flash blue for 5 seconds to confirm Bluetooth mode is activated |
| 2 | Reset the bluetooth pairing. Press the Bluetooth (BLE) button once, then press and hold it again for 10 seconds. The LED indicator will glow red. Then put the device into pairing mode by pushing the BLE button once. | ||
| 3 | Factory reset of the device. Click the Bluetooth (BLE) button 2 times. 3rd time, hold for 10 seconds. The LED indicator will glow red. Then put the device into pairing mode by pushing the BLE button once. | ||
| 4 | Perform a manual OTA firmware upgrade of the device. Use the Namron Simplify app. You will find the built in OTA upgrade app on upper left corner of the login screen. Please follow the steps described in the app. To set a device into manual OTA upgrade mode press the BLE button 10 times quickly. LED indicator will start to flash between red and blue. | ||
| Bluetooth | Device not responding in app | 1 | If the Simplify app has been closed on your device, or if there is a long times since last use you may experience that the device is not responding. Please give the app 10-60 seconds to reconnect to the Bluetooth Mesh. |
| Zigbee | Device is not found by the smart home gateway | 1 | Device is in Bluetooth mode Click and hold the Zigbee button for 10 seconds. Zigbee LED will flash green for 5 seconds to confirm Zigbee mode is activated |
| 2 | Reset the zigbee pairing. Press the Zigbee button once, then press and hold it again for 10 seconds. The LED indicator will glow red. Then put the device into pairing mode by pushing the Zigbee button once. | ||
| 3 | Factory reset of the device. Click the Zigbee button 2 times. 3rd time, hold for 10 seconds. The LED indicator will glow red. Then put the device into pairing mode by pushing the Zigbee button once. | ||
| 4 | Perform a manual OTA firmware upgrade of the device. Use the Namron Simplify app. You will find the built in OTA upgrade app on upper left corner of the login screen. Please follow the steps described in the app. To set a device into manual OTA upgrade mode press the Zigbee button 10 times quickly. LED indicator will start to flash between red and blue. |
